7. ADI+IFS: PSF subtraction and forward modeling¶
Author: Valentin ChristiaensSuitable for VIP v1.2.2 onwards (Warning this is a different version requirement than other tutorials)Last update: 2022/04/13
Table of contents
- 7.1. Loading and visualizing the data
- 7.2. Planet parameters and spectra
- 7.3. Flux normalization
- 7.4. Injection
- 7.5. Post-processing of IFS data
- 7.6. Astrometry retrieval
- 7.7. Spectrum retrieval
The purpose of this tutorial is to show: - how to inject a planet spectrum in a 4D (IFS+ADI) datacube; - how to post-process 4D (IFS+ADI) datacubes; - how to retrieve the parameters of a planet present in a 4D (IFS+ADI) datacube (astro- and spectrometry).
Note that the model spectra (for the star and planet) used in this notebook are provided after resampling for the purpose of highlighting the capabilities of VIP only (i.e. to avoid having to install additional requirements to be able to run this tutorial). If you are interested in a more complete planet spectrum injection procedure, check out this Exoplanet Data Challenge Phase 2 tutorial, which also requires the
following external packages: `special
<https://github.com/VChristiaens/special>`__ (for model resampling) and `eidc2
<https://github.com/exoplanet-imaging-challenge/phase2>`__ (for better flux normalization before spectrum injection).
Let’s first load all packages needed in this tutorial:
[1]:
import astropy.constants as c
import glob
from hciplot import plot_frames, plot_cubes
from matplotlib import pyplot as plt
import numpy as np
import pandas as pd
#from special.model_resampling import resample_model
#from special.utils_spec import find_nearest
from vip_hci.config import VLT_SPHERE_IFS
from vip_hci.fits import open_fits, write_fits
from vip_hci.fm import (cube_inject_companions, firstguess, mcmc_negfc_sampling, normalize_psf,
show_walk_plot, show_corner_plot, confidence)
from vip_hci.metrics import snr, significance
from vip_hci.psfsub import median_sub, pca, pca_annular, pca_annulus, pca_grid
from vip_hci.preproc import find_scal_vector, frame_rescaling
from vip_hci.var import frame_center, dist, mask_circle
7.1. Loading and visualizing the data¶
In the ‘datasets’ folder of the VIP_extras
repository you can find a toy SPHERE/IFS coronagraphic cube acquired in pupil-stabilized mode on the source HIP39826 (a star with no reported directly imaged companion). The folder also contains the associated non-coronagraphic point spread function (PSF), wavelength vector, parallactic angles, and airmass of the source.
Let’s now load the data. Note that more info on opening and visualizing fits files with VIP in general is available in the first VIP tutorial.
[2]:
path = '../datasets/'
cubename = path+'sphere_ifs_HIP39826_cube.fits'
psfname = path+'sphere_ifs_HIP39826_psf.fits'
lbdaname = path+'sphere_ifs_HIP39826_wl.fits'
angname = path+'sphere_ifs_HIP39826_pa.fits'
Xname = path+'sphere_ifs_HIP39826_airmass.fits'
cube = open_fits(cubename)
psf = open_fits(psfname)
lbda = open_fits(lbdaname)
derot_angles = -1*open_fits(angname) # note: SPHERE DRH returns parallactic angles, while VIP routines take derotation angles as input
X_sci = open_fits(Xname)
nch, nz, ny, nx = cube.shape
Fits HDU-0 data successfully loaded. Data shape: (39, 55, 107, 107)
Fits HDU-0 data successfully loaded. Data shape: (39, 29, 29)
Fits HDU-0 data successfully loaded. Data shape: (39,)
Fits HDU-0 data successfully loaded. Data shape: (55,)
Fits HDU-0 data successfully loaded. Data shape: (55,)
Each IFS spectral cube consists of 39 monochromatic images spread in wavelengths between the Y and J bands (‘YJ’ mode) or Y and H bands (‘YJH’ mode). Here the IFS+ADI cube contains 55 such spectral cubes combined into a single master cube.
The master spectral cube is already centered, trimmed from bad frames, and mostly corrected from bad pixels (check Tutorial 2 for example uses).
Let’s inspect the first wavelength using hciplot.plot_cubes
(feel free to set the backend to ‘bokeh’ to read pixel values interactively):
[3]:
plot_cubes(cube)#, backend='bokeh')
:Dataset [x,y,time,lambda] (flux)
:Cube_shape [107, 107, 55, 39]
[3]:
We notice that the flux varies and the PSF size increases, both as a function of wavelength.
Now let’s inspect the PSF cube (one frame per wavelength), which will be used for the actual injection of a fake planet:
[4]:
plot_cubes(psf)
:Dataset [x,y,time] (flux)
:Cube_shape [29, 29, 39]
[4]:
As we can see, the flux varies as a function of wavelength. This reflects the intrinsic spectrum of the star but also the instrumental transmission and atmospheric absorption bands (e.g. associated to the water molecule) affecting some wavelengths more than others. The flux will be normalized in the next section, before injection.
Now let’s check the parallactic angle and airmass variations:
[5]:
%matplotlib inline
fig, axes = plt.subplots(1,2, figsize = (14,5))
ax1, ax2 = axes
ax1.plot(range(1,nz+1), derot_angles)
ax1.set_xlabel("Cube index")
ax1.set_ylabel("Parallactic angle (deg)")
ax2.plot(range(1,nz+1), X_sci)
ax2.set_xlabel("Cube index")
ax2.set_ylabel("Airmass")
plt.show()
Note the sudden variation in parallactic angle at the end of the sequence is because we trimmed bad frames from the sequence (all were located towards the end of the observation).
Let’s define the pixel scale for IFS - note that this is optional since the planet coordinates will be given in pixels. It will still be useful to have meaningful radial separations expressed in arcsec.
[6]:
plsc = VLT_SPHERE_IFS['plsc']
print(plsc, "arcsec/px")
0.0074 arcsec/px
Let’s also define the mean spectral resolution of the instrument (which will be used for convolution of model spectra):
[7]:
spec_res = 50.
Let’s now load and visualize the coronagraphic radial transmission profile:
[8]:
trans = open_fits(path+"../datasets/sphere_ifs_YJ_APLC_CoroTransmission.fits")
Fits HDU-0 data successfully loaded. Data shape: (40, 23)
[9]:
last_r = 20
plt.figure(figsize=(10,6))
plt.plot(trans[0,:last_r]*1000, trans[1,:last_r], 'b', label='ch 1')
plt.plot(trans[0,:last_r]*1000, trans[10,:last_r], 'c', label='ch 10')
plt.plot(trans[0,:last_r]*1000, trans[20,:last_r], 'y', label='ch 20')
plt.plot(trans[0,:last_r]*1000, trans[30,:last_r], 'm', label='ch 30')
plt.plot(trans[0,:last_r]*1000, trans[-1,:last_r], 'r', label='ch 39')
plt.xlabel("Radius (mas)")
plt.ylabel("Transmission")
plt.legend()
[9]:
<matplotlib.legend.Legend at 0x7f8d3020afd0>
EDIT: this is not the most up-to-date SPHERE coronagraphic transmission curve. Please contact relevant SPHERE colleagues or check the ESO website for a newer version. Do not use the above curve for your research.
7.2. Planet parameters and spectra¶
Now let’s set the ground truth coordinates and average contrast (over all wavelengths) at which two planets will be injected in this cube:
[10]:
xy_b = (58.6,37.7)
contrast_b = 1e-3
xy_c = (83.8,29.9)
contrast_c = 2e-4
Let’s convert cartesian to polar coordinates:
[11]:
cy, cx = frame_center(cube)
r_b = dist(cy, cx, xy_b[1], xy_b[0])
r_c = dist(cy, cx, xy_c[1], xy_c[0])
theta_b = np.rad2deg(np.arctan2(xy_b[1]-cy, xy_b[0]-cx))
theta_c = np.rad2deg(np.arctan2(xy_c[1]-cy, xy_c[0]-cx))
[12]:
print(cy, cx)
print(r_b, theta_b)
print(r_c, theta_c)
53 53
16.292636373527763 -69.89671372878468
38.5 -36.86989764584403
Now let’s consider two fiducial model spectra for the injection of the 2 planets: a flat spectrum and a 1000K blackbody model (note that this exercise is purely academic).
[13]:
def blackbody(lbda, T):
fac = 2*c.h.value*(c.c.value**2)/(np.power(lbda*1e-6,5))
div = (1/(np.exp((c.h.value*c.c.value)/((lbda*1e-6)*c.k_B.value*T))-1))
# convert from W m-3 Sr-1 to W m-2 mu-1 Sr-1
conv = 1e-6
return fac*div*conv
[14]:
fluxes_b = np.ones_like(lbda)
fluxes_c = blackbody(lbda, 1000)
spec_b = np.array([lbda, fluxes_b])
spec_c = np.array([lbda, fluxes_c])
[15]:
plt.plot(lbda, fluxes_b/np.amax(fluxes_b), 'k', label='flat')
plt.plot(lbda, fluxes_c/np.amax(fluxes_c), 'r', label='1000 K BB')
plt.xlabel(r"$\lambda (\mu$m)")
plt.ylabel(r"$ F_{\lambda}$ (arbitrary units)")
plt.legend()
[15]:
<matplotlib.legend.Legend at 0x7f8d425d76a0>
7.3. Flux normalization¶
7.3.1. Non-coronagraphic PSF normalization¶
Let’s measure the flux and FWHM of the non-coronagraphic PSF and normalize its flux to 1 in a 1-FWHM radius aperture (all at once), in all channels, using VIP’s fm/normalize_psf
function. We use the debug

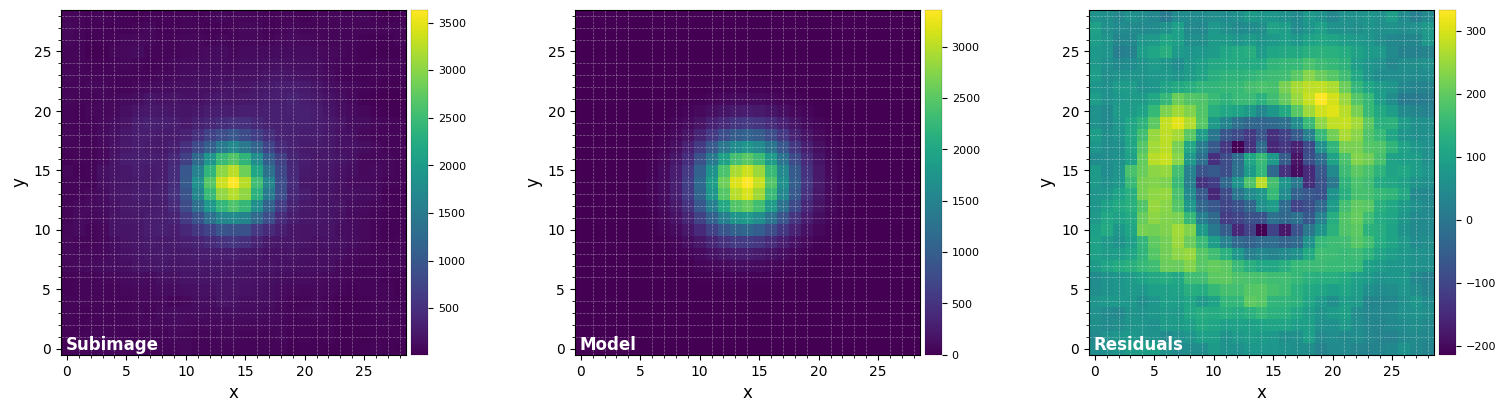

option to check that each 2D Gaussian fit worked properly:
[16]:
%matplotlib inline
psfn, flux_st, fwhm = normalize_psf(psf, fwhm='fit', full_output=True, debug=True)
